"Extra Vagancia" Sport Fisherman

by Bruno
(Germany)

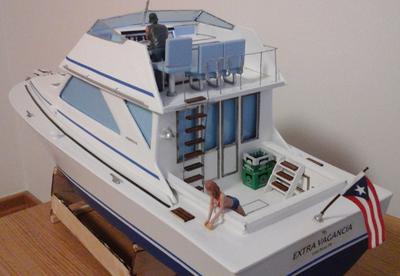

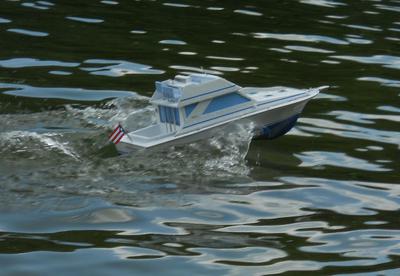

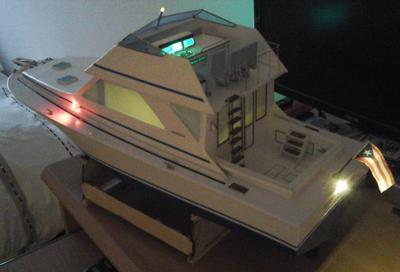

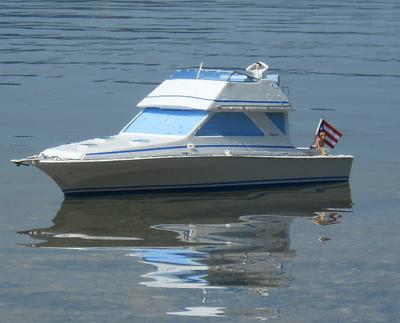

This is my flotilla flagship. Scratch-built Inspired by 1970s Chris Craft 45 SF/Commander and Bertram 46 Convertible. Fiberglass 25-inches deep-vee hull made in the U.S.A. I found it on Ebay. Balsa wood superstructure reinforced with epoxy. Approx. 1/20 scale. Real boat could be nearly 42.2 x 13.8 feet, similar to a Bertram 42 Convertible (42.6 x 14.10). Equipped with 9v lights system. Completion time: nearly 155 hours (5 months). It runs with a NiMH 10.8V battery pack, 4mm driveshaft paired to a 3-bladed 35mm bronze propeller. Due to its high energy consumption during initial testing with a brushed motor (perhaps due to its very deep v hull design), I opted for a brushless "High Performance 2845" brushless motor I found on Ebay (around $30) and a mega-reliable and idiot-proof plug and play Mtroniks G2 30A controller, dramatically extending its running time. Under high speeds on calm water it tends to bounce just like a real deep v does, but can outperform flat bottomed boats on choppy waters.

Comments for "Extra Vagancia" Sport Fisherman

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
starstarstarstarstar 		Hull - Extra Vagancia
by: Bruno

Hello!

Yes, a Puerto Rican in Europe :)

As for the hull, I got it on Ebay. The seller regularly issues posts with similar hulls. I recently developed something like what you just described by combining two plans and developing my own. I did it all manually as I have no skills with CAD or any of those fancy programs. I used the .pdf plans for a cabin cruiser offered in this site, expanded them to 130% for printing purposes, and altered its keel to reach a Deep-Vee shape and followed reshaped the bow portion of the keel to follow the lines of a Chris Craft I like and voila, I got what I wanted measuring a bit over 22 inches.
Rating
starstarstarstarstar 		Nice boat
by: Juan Perez

Hi
Super nice boat. Looking to build something similar to my kid but is very difficult to find plans and kit. I saw post of Dumas Donzi Z65 but I don’t find anything to buy.
The best of this boat is the Puerto Rico flag. You are from PR?

Thanks
Rating
starstarstarstarstar 		Thank you, Gilbert!
by: Bruno

Thank you, Gilbert! I'm looking forward to see your new baby.
Rating
starstarstarstarstar 		sport fisherman
by: Gilbert

Hi Bruno. You have been quite busy with the boat building. they are good looking boats. I have had my side trawler the Emily Clare on the work bench fitting a new motor & modifying the super structure from fiberglass to aluminium to reduce the weight above the water. She is almost ready to go for sea trials very soon. I will put up some pictures when she sails again, should be faster & more stable on the water.

Click here to add your own comments
