Wave Runner - RC CRUISER

by Anshul Wadia
(Bilimora, Gujarat, India)

Hello mates,
I always dreamed of making a model boat myself. And i'm sure you have got too...so lets get started here.
To begin with I'd like to thank Petter Sir for his excellent support through his website.

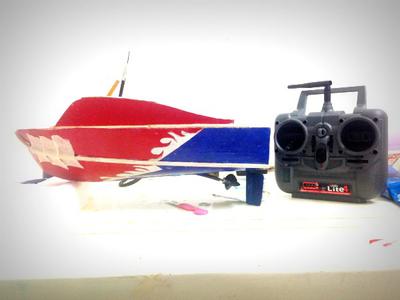

This is a RC model of a Cruiser boat.

Made up of only Balsa wood with variable thickness.
Preferred adhesive - Araldite

I will brief you about how I constructed this model

The building detail of every step is numbered below.(Please Refer The Pictures)

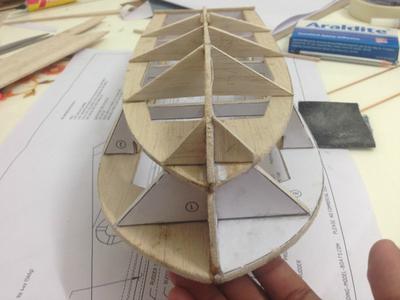

1. Cut out the Stem, Bulkheads, Deck, Keel, Transom and Stiffeners for assembly.

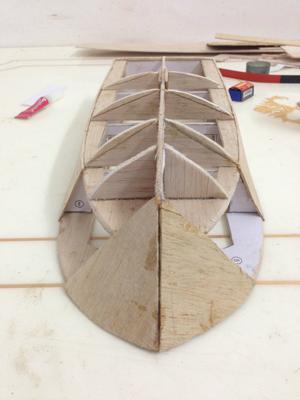

2. Form the lower bulkheads by joining a line from the keel to the deck edge. It is preferred that we fair this flat/straight bulkheads with slight arc. a batten can be used to mark on the other piece of wood and cut paste it on the bottom bulkhead for better finesse.
Good job we have completed the internal structure. Lets proceed to the planking

3. Planking need special attention and accurate measurements.
And so far we must have had experienced that balsa wood can easily break over some amount of stress.

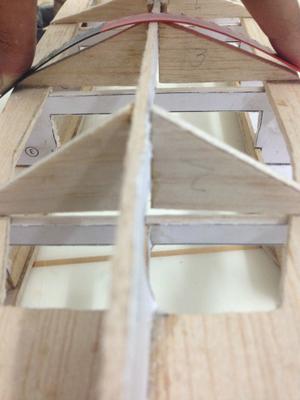

Therefore i have added an extra bottom bulkhead between 1 and 2 for better planking by parts.

4. Clips can be use for better planking hold. And it is preferred that we plank the bottom at last.

5. Propeller shaft tube and Rudder shaft must be properly aligned vertically. Use M-seal to make the hull watertight.

6. Apply wood primer and paint for better finish and look.

7. Superstructure is built as temporary so it is easily removed for easy maintenance of the electronics inside.

8. This particular boat is light in weight and can handle speed very well.

9. We are free to use our innovative minds for better performance.

10. For details regarding the RC equipment or the structure, Kindly email for any Q&A

Enjoy building boats.



Comments for Wave Runner - RC CRUISER

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
starstarstarstarstar
Nice ride!
by: Bruno

Thank you for the video! Your boat looks fantastic in the water. Much faster than mine (Bon Vivant), that's for sure, but I see the turning and other handling characteristics are quite similar. Great and fun hull design, that's for sure. Considering Petter's plans, I think these boats match a 1/18 scale of a 23-footer vessel. I'm thinking on enlarging this hull for a future project, perhaps 2 inches or so to accomodate a larger motor. Well done!

Rating
starstarstarstarstar
Pertaining to Mech config.
by: Anonymous

hey Bruno,
Thankyou!
I m glad you like my boat, the paint scheme would be impossible without my friends lol some cool idea emerged and we followed it. The only drawback is that I was unable to provide a lift to the hull with its speed. To make high end craft she is fitted with a Brushless high performance rotor motor with a 30A ESC, and a 7.4V 1300mAh high discharge Li-Po battery gives a good thrust and 9g servo is optimum to navigate the model.
Moreover if 2.4GHz 4channel Radio controller is used, it becomes a perfect joy ride:)

the trial video is at the link below
https://www.youtube.com/watch?v=FxrN_LFch3A



Rating
starstarstarstarstar
Nice job!
by: Bruno

I'm glad to see another fellow RC Cruiser builder's product. Greeat job! I really like your paint scheme. Please post a video to see it in action. Can you please say something about your power system?

Best,

b.
