USS Olympia Plans

USS Olympia Plans of the US Navy Protected Cruiser from the Spanish-American War. Model boat builders, Historians and Educators: Download it here in either 1/96 or 1/144 scale.

Purchase a set of USS Olympia plans here for building the protected cruiser USS Olympia of Spanish-American War fame. This plan can be used for:

  • plank on bulkhead
  • bread-and-butter model boat construction
  • hang on the wall for education or inspiration
A contemporary plan of the USS Olympia showing "General Arrangements".
uss olympia plans

The Scanned General Arrangement Plan is from 1893, so predates the ship's first commission. It has been re-sized to the correct scale and digitally enhanced. As a result, the plan sheet is remarkably clear and detailed.

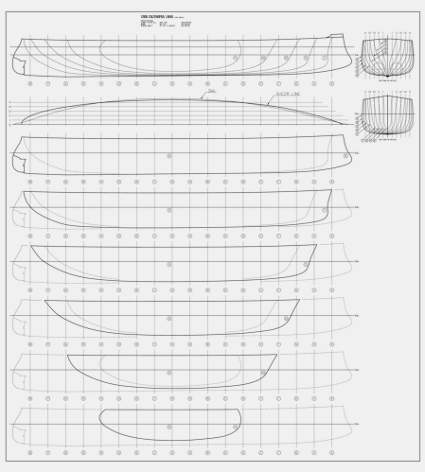

CAD generated hull lines and buttocks templates for Bread-and-Butter construction.
uss olympia lines plan

The lines plan is CAD generated and lofted. It has been drafted with 18 sections - plenty for a plank-on-bulkhead project. The buttocks templates has been provided for those interested in using the bread-and-butter method. The buttocks have been spaced to correctly correlate to commercially available lumber:

  • 1/144 scale
    • 3/8" thick hobby lumber or "thin wood"
    • 4/4 (3/4" thick) lumber using every other buttock template
  • 1/96 scale: commercial "4/4" (3/4" thick finished) lumber

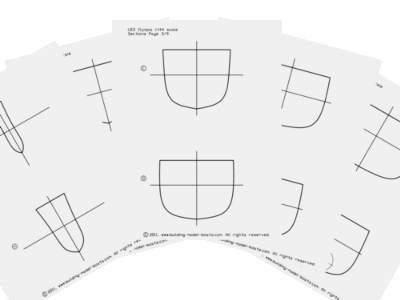

CAD generated section templates - ideal for plank-on-bulkhead construction.
uss olympia section templates

Each section has been laid out in a separate pdf document on regular "letter" (8 1/2 X 11 inch) paper. For those outside the US, the template can be printed (and still fit) onto A4 size paper. Just make sure you select "scaling" = "None" when printing.

Each template has a horizontal line going through it representing the Design Water Line (DWL) and a vertical center line. Both are there with the intent to aid the process of referencing bulkheads to keelson.

  • The plans package include the following pdf files:
  • One large sheet: General Arrangements
  • One large sheet - Lines Plan and Buttocks Templates
  • A pdf document with the eighteen Section Templates laid out
  • A Midship Cross Section at 1/4" = 1'

USS Olympia

1:96 scale in a single zip file.

Price: $24.95

Store Policy & Terms of Use.

Add to Cart
View Cart

USS Olympia

1:144 scale in a single zip file.

Price: $24.95

Store Policy & Terms of Use.

Add to Cart
View Cart

If you have any questions or comments about these plans, please use the form on the Contact Page.


USS Olympia Model

Read about Roger Kreiter's model of the USS Olympia built from these plans.
